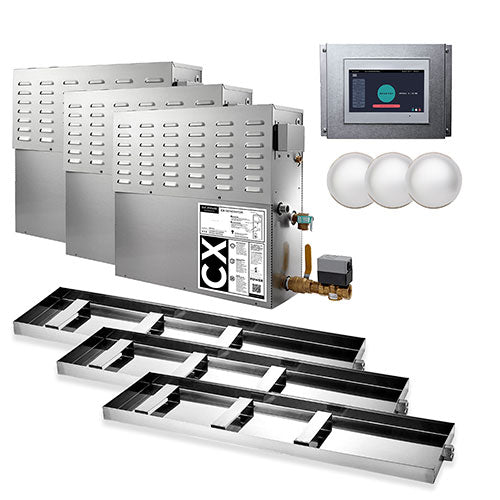

Mr. Steam CX Steam Generator Package – 30kW to 120kW, Commercial-Grade

• Industrial-strength CX Generator in stainless steel with quiet operation
• Serviceable large-diameter heating element for long-term performance

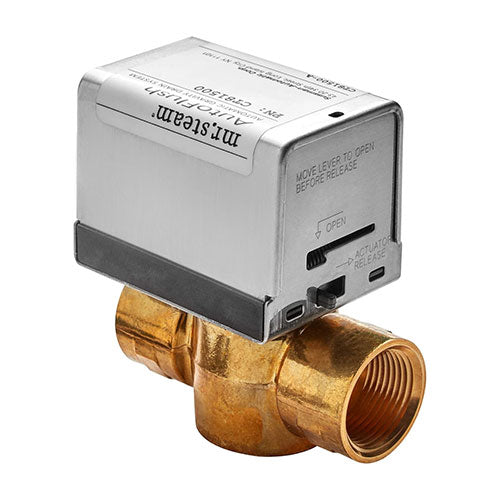

• AutoFlush System factory-installed to prolong generator life
• Electronic water level control, high-limit shutoff, and overfill protection
• Preheat programming to ready the room at your business opening time
• 7” CX Control with full color touchscreen and multi-generator support
• Polished Chrome SteamHead with acrylic shield for safety and design
• Condensation Pan redirects drainage and protects floor structures
• Compact design for flexible installations

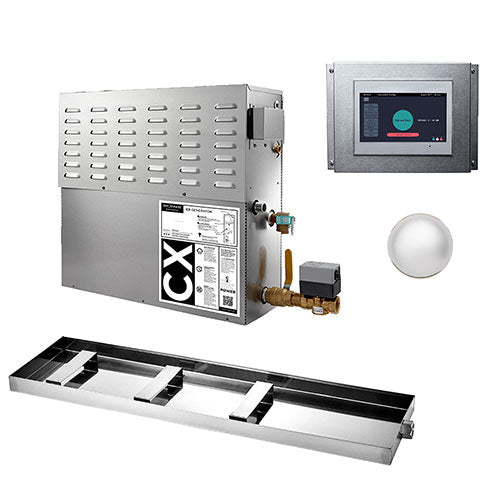

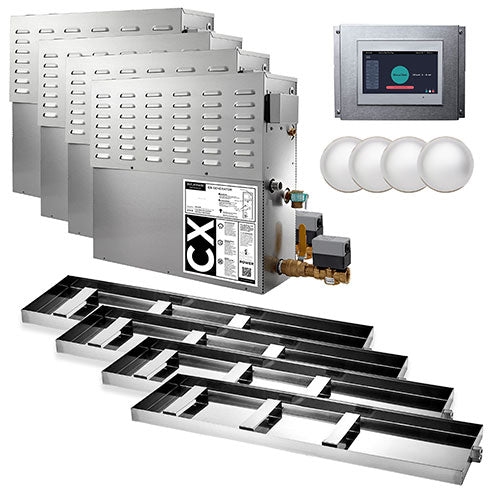

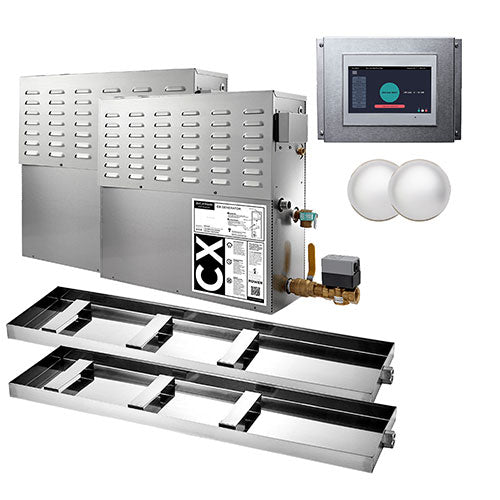

• Multiple generator packages ship with multiple components (based on room size)

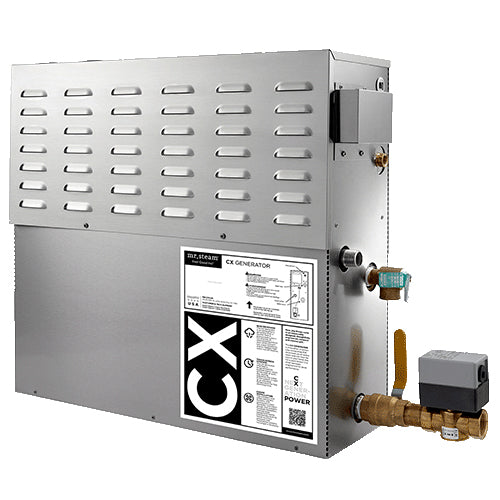

Generator (per unit):

• Size: 33.9″ L × 7.9″ W × 22″ H
• Weight: 60 lbs
• Material: Stainless Steel
• Power: 30kW to 120kW (30000W–120000W)
• Water Supply: 3/8″ NPT
• Drain: 1″ NPT
• Safety Valve: 3/4″ NPT
• Installation: Hardwired
• Room Capacity: 1,001–5,000 cu. ft.

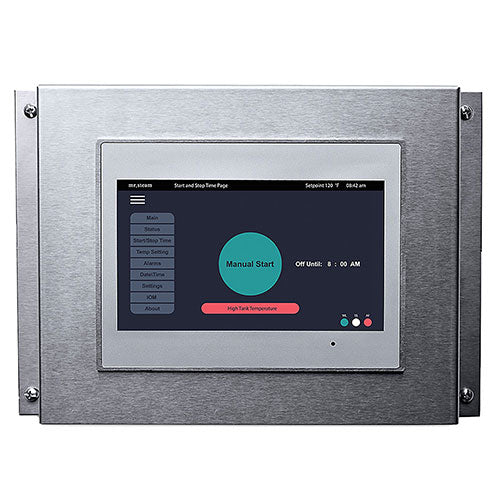

CX Touch Control:

• Size: 7.1″ L × 1.9″ W × 5.3″ H
• Display: Full-color 7” touchscreen
• Interface: Menu-driven
• Multi-generator support

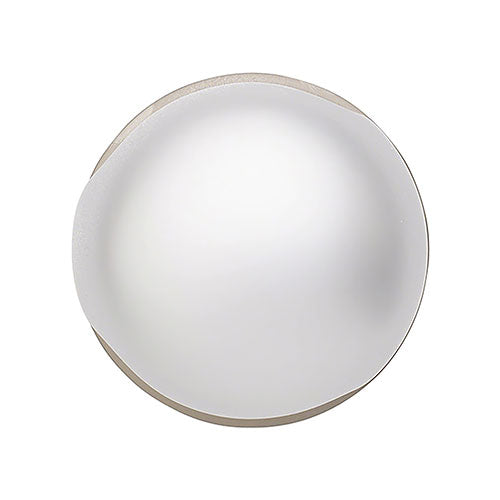

Commercial SteamHead:

• Size: 3.1″ Diameter × 1.8″ Depth
• Finish: Polished Chrome
• Features: Includes acrylic shield
• Installation: Wall flush-mount

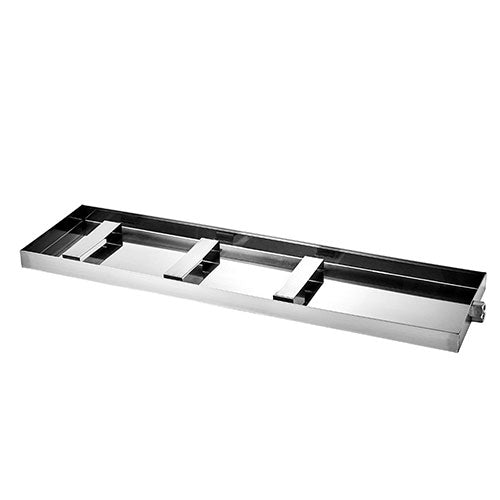

Condensation Pan:

• Size: 33″ L × 1.5″ W × 9″ H
• Material: Stainless steel
• Placement: Beneath generator on level surface
• Function: Redirects water to drain area

Shipping Info:

• Ships palletized by special appointment
• Curbside delivery only—driver will lower to ground
• Pre-shipment contact to confirm delivery readiness

Mr. Steam is the industry benchmark in professional-grade steam equipment, with over 100 years of steam expertise. The CX series brings cutting-edge technology to high-volume commercial environments, engineered for nonstop performance in the toughest conditions.

Unlike conventional generators, CX units are whisper-quiet, easier to install, and require less maintenance thanks to their AutoFlush systems, electronic water level management, and modular scalability. With intuitive CX touchscreen control and built-in daily scheduling, they reduce staff workload while delivering peak performance to customers.

If you're building or retrofitting a professional steam room, this is the most future-proof, feature-rich generator package available—ready to meet your business goals and client expectations.
